Product Name: Anesthesia Laryngoscope
1. Main structural Components:

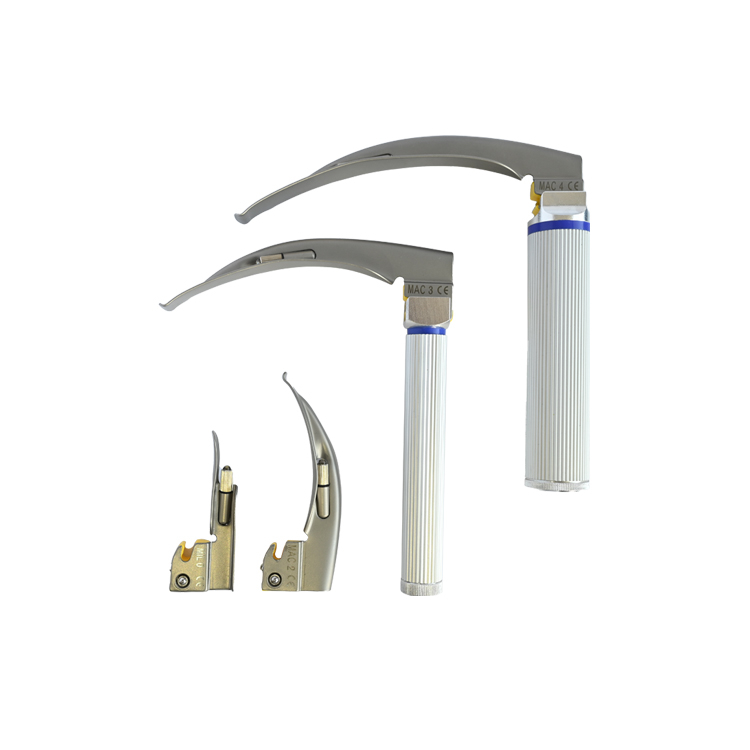

The anesthesia laryngoscope consists of a blade and handle. It features an LED light source and a fiber guide beam lighting method. The product is reusable.
2. Applicable scope and applicable people:
Scope of application: Used to assist tracheal intubation during clinical anesthesia or first aid;
User group: Suitable for people who are intubated during emergency and anesthesia surgeries;
3. One of the representative products:
Fiber Optic Model
Advantages of Fiber Optic Model
Conduction principle:Conducted through light guide fibers as a cold light source;
Position of the bulb:The LED bulb is located at the front of the handle for long-lasting use;
Disinfection frequency:The fiber optic tube does not need to be disassembled and can be directly sterilized over 4000 cycles;
Required battery model:Equipped with standard C and AA batteries, convenient to obtain.
Hot Tags: Laryngoscope, Fiber Optic Laryngoscope, Laryngoscope Handles, Fiberoptic Endoscopic Evaluation Of Swallowing Equipment, Laryngoscopy Direct With Biopsy, Endoscopy Anesthesia, Emergency Endoscopy, China, OEM, Manufacturers, Agent, Devices, Suppliers, Factory, Technical, Assembling, Technology

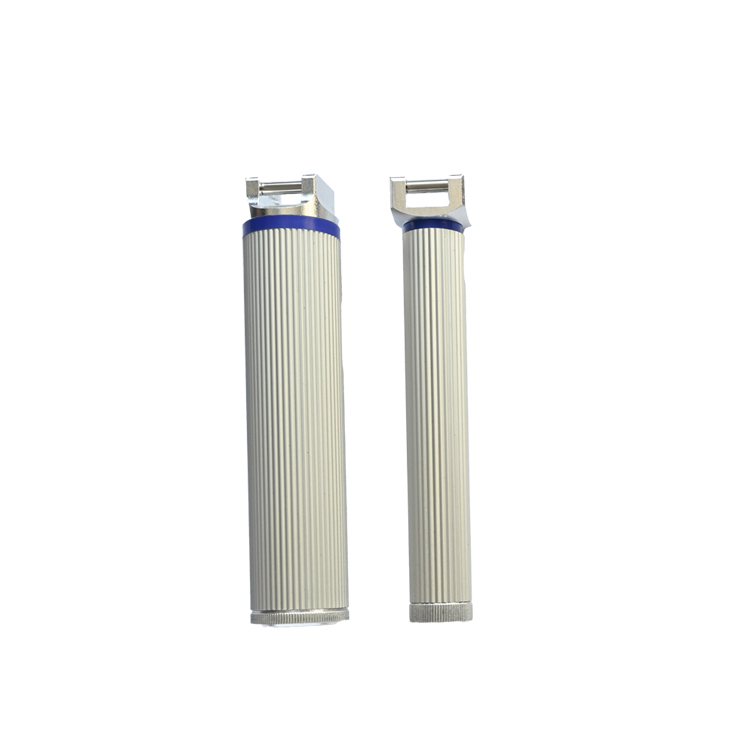

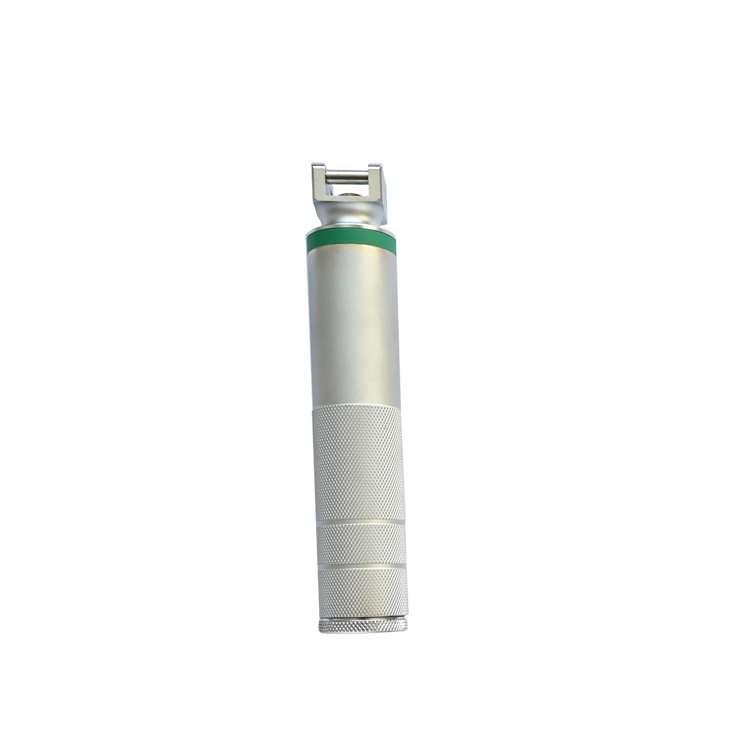

| Basic Dimensions of handle Unit: mm | |||||
| Model Comparison | Handle Size | ||||
| Model | Remarks | D(±10%)(mm) | H(±10%)(mm) | ||
| BMY-X01L | Long,thick handle version with fiber-optic illumination | 28.5 | 150 | ||
| BMY-X01S | Short,thick handle version with fiber-optic illumination | 28.5 | 110 | ||
| BMY-X02L | Long,thin handle version with fiber-optic illumination | 18 | 150 | ||
| BMY-X02S | Short,thin handle version with fiber-optic illumination | 18 | 110 | ||

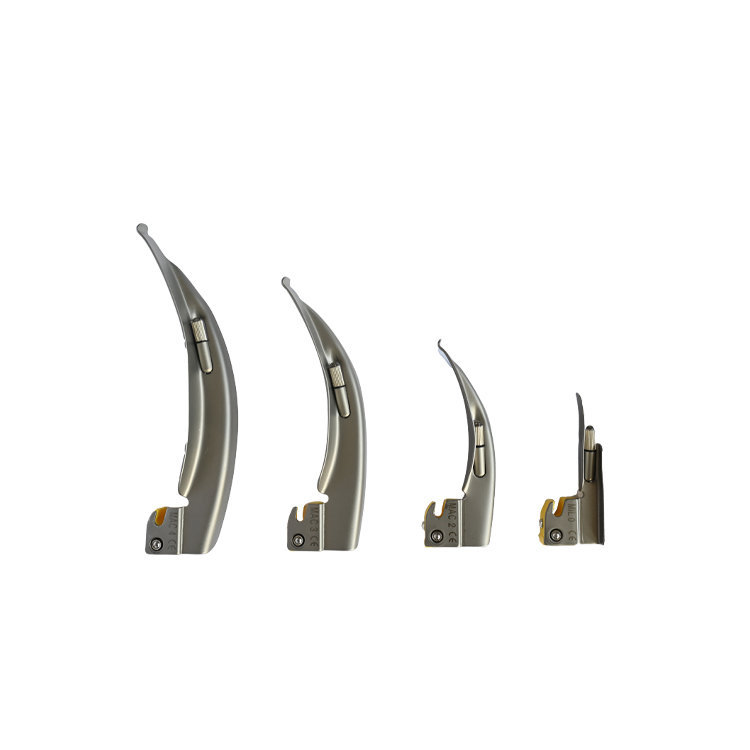

| Size of Blade Unit: mm | |||||
| Model | Length/Specifications | Instruction Manual | L(±10%) | B | H(±10%) |
| X-A50 | 50 | Premature baby | 50 | 9.0±1.5 | 14 |
| X-A65 | 65 | Newborn | 65 | 9.0±1.0 | 14 |
| X-A75 | 75 | Baby | 75 | 15 | |
| X-A90 | 90 | Child | 90 | 25 | |
| X-A105 | 105 | Adult trumpet | 105 | 10.0±1.0 | 28 |
| X-A130 | 130 | Adult medium | 130 | 16.0±2.0 | 38 |
| X-A155 | 155 | Adult large size | 155 | 45 | |
| X-A180 | 180 | Adult extra large | 180 | 50 | |
| X-B50 | 50 | Premature baby | 50 | 9.0±1.5 | 15 |
| X-B65 | 65 | Newborn | 65 | 11.0±1.0 | 15 |
| X-B75 | 75 | Baby | 75 | 15 | |
| X-B85 | 85 | Child | 85 | 15 | |
| X-B105 | 105 | Adult trumpet | 105 | 15 | |
| X-B160 | 160 | Adult medium | 160 | 13.5±2.0 | 16 |
| X-B200 | 200 | Adult large size | 200 | 17 | |
| X-B210 | 210 | Adult extra large | 210 | 18 | |
| X-C105 | 105 | Adult trumpet | 105 | 14.0±1.5 | 33 |
| X-C135 | 135 | Adult medium | 135 | 16.0±1.5 | 46 |
| X-C155 | 155 | Adult large size | 155 | 60 | |
| Laryngoscope Illumination Unit: Lux(lx) | |||||
| Blade appearance | Blade Length | Instruction Manual | Fiber Guide Beam Lighting Type(Xtype) | ||
| A | 50 | Premature baby | ≥500 | ||
| 65 | Newborn | ||||
| 75 | Baby | ||||
| 90 | Child | ||||
| 105 | Adult trumpet | ||||
| 130 | Adult medium | ||||
| 155 | Adult large size | ||||
| 180 | Adult extra large | ||||
| B | 50 | Premature baby | |||
| 65 | Newborn | ||||
| 75 | Baby | ||||
| 85 | Child | ||||
| 105 | Adult trumpet | ||||
| 160 | Adult medium | ||||
| 200 | Adult large size | ||||
| 210 | Adult extra large | ||||
| C | 105 | Adult trumpet | |||
| 135 | Adult medium | ||||
| 155 | Adult large size | ||||
| Working Conditions | |||||
| Temperature | Humidity | Atmospheric Pressure | Internal Battery Voltage | ||
| 10℃-40℃ | 30%-75% | 860hPa-1060hPa | DC2.7V-DC3.15V | ||
